Ringlock System Scaffold

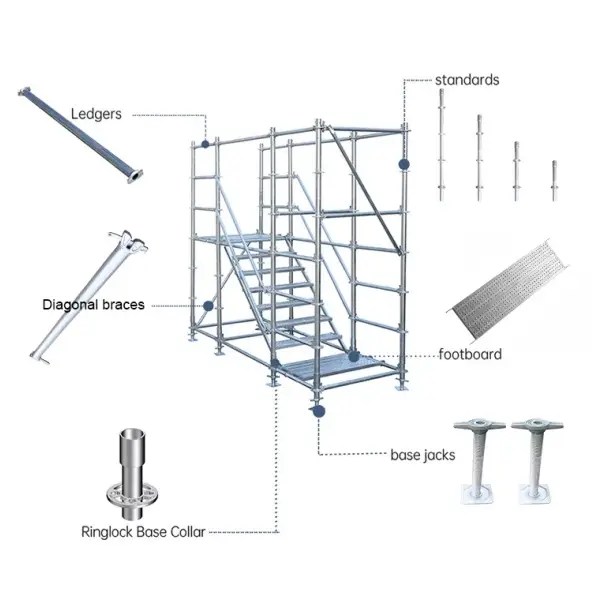

The Ringlock system scaffold, also known as Layher type or Allround ringlock scaffolding. It’s characterized by its efficiency and ease of use. At each node point or rosette, eight connections are available on a single plate, with each rosette pre-measured at a 500mm distance. Locking the Ledgers and Standards securely into place is a quick process, requiring only a hammer and several seconds.
* Popular Specification: OD48.3×3.2mm, OD48.3×2.5mm,
* Surface Treatment: Hot-dip-galvanized; Powder-coated; Pre-galvanized;
* Material: Q355/Q235
* Spigots: Pressed Spigots, Bolted Spigots,
* Technique Support: Facade scaffolding and shoring scaffolding project design is available.
* MOQ: 1 container
* Scaffolding Price: Contact us for updated mass production price soon.
Product Details
| Ringlock Scaffolding: * Easy Assembly and disassembly * Strength and Stability * Time and Labor Savings * Safety |
||||
| Standards | Length(mm) | Tube Diameter | Tube Thickness | Surface Treatment |
| 3000 | 48mm | 3/3.25mm | Powder Coated/HDG | |
| 2500 | 48mm | 3/3.25mm | Powder Coated/HDG | |
| 2000 | 48mm | 3/3.25mm | Powder Coated/HDG | |
| 1000 | 48mm | 3/3.25mm | Powder Coated/HDG | |
| 500 | 48mm | 3/3.25mm | Powder Coated/HDG | |
| Ledgers | Length(mm) | Tube Diameter | Tube Thickness | Surface Treatment |
| 3050 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 2570 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 2070 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 1540 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 1090 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 730 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 610 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| Diagonal Braces | Length(mm) | Tube Diameter | Tube Thickness | Surface Treatment |
| 3050×2000 | 33/42/48mm | 2.3/2.5/2.75/3mm | Galvanized/HDG | |
| 2570×2000 | 33/42/48mm | 2.3/2.5/2.75/3mm | Galvanized/HDG | |
| 1090×2000 | 33/42/48mm | 2.3/2.5/2.75/3mm | Galvanized/HDG | |
| 730×2000 | 33/42/48mm | 2.3/2.5/2.75/3mm | Galvanized/HDG | |
| OEM and customized sizes are available! Please contact us for other sizes! | ||||
What size is ringlock scaffolding?
The most popular bay height of ringlock scaffolding is 2m, bay width is 0.73m/1090mm, and bay length is 2.07m/2.57m/3.07m. Of course, other size could be also customized based on project need.
