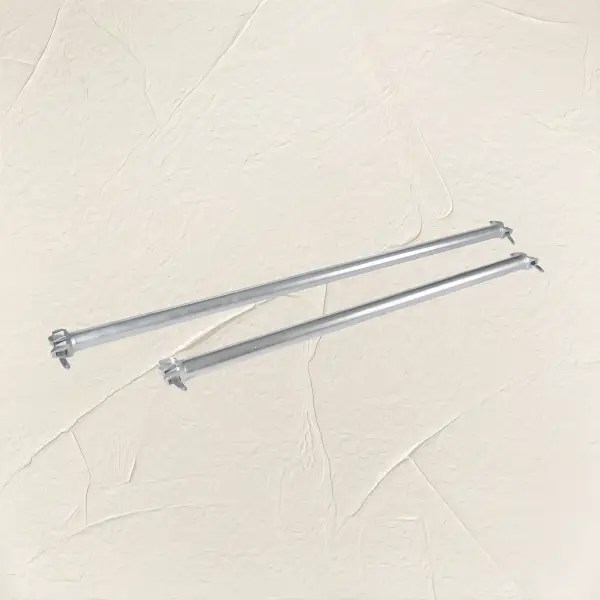

Ringlock Horizontal/Ledger
The Ringlock Ledger, a crucial component in the galvanized Ringlock scaffolding system, serves as a horizontal tube connecting the vertical standards. It comes in various specifications, typically OD48.3×3.2/3.0/2.5mm, made from either Q355 or Q235 steel. The ledger ends are primarily of two types: Ductile Iron and forged accessories. For enhanced stability, forged ledger ends are commonly employed, ensuring a secure connection to the standards’ rosettes.
* Popular Specification: OD48.3×3.2/3.0/2.5mm
* Surface Treatment: Hot-dip-galvanized; Powder-coated;
* Material: Q355/Q235
* Ledger end: Ductile Iron and forged type
* Technique Support: Facade scaffolding and shoring scaffolding project design is available.
* MOQ: 1 container
* Scaffolding Price: Contact us for updated mass production price soon.
Product Details
| RINGLOCK SYSTEM | ||||
| DESCRIPTION | SIZE | UNIT W.T | ||
| METERS | FEET | (KG) | （LB） | |
| LEDGER | ||||
| Material: φ48.3×3.2mm(1.9″x0.13″) steel tube | ||||
| Specification: Ledger O-Type with casting ends | 0.61 | 2′-0″ | 2.96 | 6.51 |
| Ledger O-Type with casting ends | 0.91 | 3′-0″ | 4.14 | 9.10 |
| Ledger O-Type with casting ends | 0.99 | 3′-3″ | 4.41 | 9.72 |
| Ledger O-Type with casting ends | 1.07 | 3′-6″ | 4.59 | 10.09 |
| Ledger O-Type with casting ends | 1.15 | 3′-10″ | 4.86 | 10.69 |
| Ledger O-Type with casting ends | 1.21 | 4′-0″ | 5.09 | 11.19 |
| Ledger O-Type with casting ends | 1.29 | 4′-3″ | 5.56 | 12.25 |
| Ledger O-Type with casting ends | 1.52 | 5′-0″ | 6.16 | 13.55 |
| Ledger O-Type with casting ends | 1.83 | 6′-0″ | 7.25 | 15.95 |
| Ledger O-Type with casting ends | 2.06 | 6′-9″ | 8.35 | 18.40 |
| Ledger O-Type with casting ends | 2.13 | 7′-0″ | 8.40 | 18.48 |
| Ledger O-Type with casting ends | 2.43 | 8′-0″ | 9.52 | 20.94 |
| Ledger O-Type with casting ends | 2.74 | 9′-0″ | 11.08 | 24.43 |
| Ledger O-Type with casting ends | 3.05 | 10′-0″ | 11.59 | 25.49 |
| Surface finish: hot dipped galvanized (70 microns) | ||||
| Size could be customized! | ||||
| Ringlock Scaffolding main components: Ringlock Standard/vertical tubes; Ledger/Horizontal Tube; Diagonal Brace; Planks, Base Collars, Screw Jacks, U-head screw Jacks, and so on. | ||||
| Ringlock Scaffolding: * Easy Assembly and disassembly * Strength and Stability * Time and Labor Savings * Safety |
||||
| Standards | Length(mm) | Tube Diameter | Tube Thickness | Surface Treatment |
| 3000 | 48mm | 3/3.25mm | Powder Coated/HDG | |
| 2500 | 48mm | 3/3.25mm | Powder Coated/HDG | |
| 2000 | 48mm | 3/3.25mm | Powder Coated/HDG | |
| 1000 | 48mm | 3/3.25mm | Powder Coated/HDG | |
| 500 | 48mm | 3/3.25mm | Powder Coated/HDG | |
| Ledgers | Length(mm) | Tube Diameter | Tube Thickness | Surface Treatment |
| 3050 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 2570 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 2070 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 1540 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 1090 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 730 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| 610 | 48mm | 2.5/3/3.25mm | Powder Coated/HDG | |
| Diagonal Braces | Length(mm) | Tube Diameter | Tube Thickness | Surface Treatment |
| 3050×2000 | 33/42/48mm | 2.3/2.5/2.75/3mm | Galvanized/HDG | |
| 2570×2000 | 33/42/48mm | 2.3/2.5/2.75/3mm | Galvanized/HDG | |
| 1090×2000 | 33/42/48mm | 2.3/2.5/2.75/3mm | Galvanized/HDG | |
| 730×2000 | 33/42/48mm | 2.3/2.5/2.75/3mm | Galvanized/HDG | |
| OEM and customized sizes are available! Please contact us for other sizes! | ||||
What is the difference between a ledger and a transom?
The Ledger is a horizontal tube used to connect vertical tubes, whether spanning bay length or width. Meanwhile, the Transom connects scaffolding vertical tubes at bay width, providing additional support for scaffolding planks.
